HD Tube Bender

For ½" to 2" Ø DOM and CroMoly 4130 tubing with wall thickness up to .120" and radius up to 7"

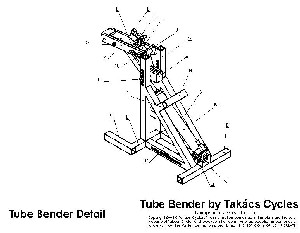

THIS IS A SET OF PLANS, NOT THE BENDER. The plans are drawn in CAD and are loaded with drawings and pictures to guide you thru the project. No, you don't have to know CAD to be able to read the plans, they are converted to PDF format for easy viewing and printing. The bender can be used with additional round and square tubing dies from ½" to 2" diameter tubing and radius up to 7 inches. Depending on the bend radius, you can bend tubing form .049" to .120" wall thickness and up to 180°. The plans come with a detailed building instruction and a List of Material and part number. The dies are available from $105 to $245 and the link to the die maker will be added in the List of Material. The frame can be built for around $100 including the hydraulic ram.  No CAD experience is needed, but good knowledge of fabrication and welding is required. You will have my support via e-mail till you finish your bender.

There is no shipping fee, since the plans are in PDF format and will be E-mailed to you as an attachment up on receiving the payment. Buyer will need to download the free Adobe Reader from Adobe.com to be able to open the file. Once the file is received, the plans can be printed on 8 ½ x 11 sheets. If paid with personal check, I will send the file as soon the check clears.  The price of the plans is $ 17.99. I will prefer PayPal or money orders I will send the file as soon as the payment is received, If paid with personal checks I will send the PDF as soon as the check clears.



.



 Now you can order with Online checkout. No PayPal account needed!
Most of the time I have plans listed throw eBay at
eBay.com. This is a link to my active auction at this time.



HD Tube Bender Plans

Order your plans today.
 Allow 24 hours for delivery.

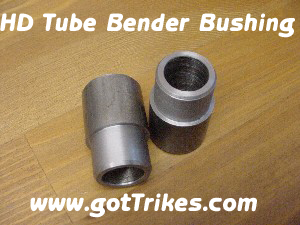

HD Die puller bushing

This part is only for the HD tube bender style B!

$ 20.00 US



Shipping prices are for the Continental United States. Other then that please e-Mail me for shipping cost!
